Modern vehicles rely on intricate electronics to maintain safety, efficiency, and smooth operation. At the core of this complexity lies the Powertrain Control Module Relay, which takes charge of every crucial engine and transmission function. But there’s a key—often invisible—component providing essential support: the powertrain control module relay. Without it, the PCM cannot function reliably.
So, what exactly is a powertrain control module relay? Why is this device so important, and what problems arise when it fails? This comprehensive guide explores the definition, operation, and troubleshooting of the powertrain control module relay, offering step-by-step advice for drivers and technicians.
A powertrain control module relay is essentially an electrical switch. Unlike manual switches, this relay operates automatically, managing the power that reaches the PCM. It decides when the PCM receives voltage from the battery and alternator, and when it doesn’t. This control ensures the module only operates under the right conditions, preventing electrical issues or erratic engine behavior.
The relay is typically located in the fuse box or a relay panel within the engine bay. It stands among other relays and fuses but serves a unique role dedicated to the PCM.
Key points:
At its core, a powertrain control module relay uses an electromagnet and a set of contacts. When the ignition is turned on, a small electrical current energizes the coil inside the relay. This generates a magnetic field, pulling the internal switch into the right position and allowing a larger current to flow to the PCM. The relay isolates the sensitive electronics of the PCM from the high-powered engine circuit, protecting vital components and ensuring reliable function.
Functions include:
In this sense, the relay acts as a bridge that connects and disconnects two circuits, enabling low-voltage controls to operate high-voltage or high-current systems.
Without the powertrain control module relay, the PCM would be exposed directly to the vehicle’s electric system, making it vulnerable to electrical faults. The relay not only allows the PCM to function during the ignition cycle but also protects it from damage caused by voltage irregularities. Additionally, it conserves battery life by ensuring the PCM is powered only when the engine requires its oversight.
Engines are now highly dependent on microprocessors to maintain optimal air-fuel mixtures, control emissions, and adapt to changing driving conditions. The relay’s ability to provide reliable power underpins all these functions, making it foundational for modern vehicle performance.

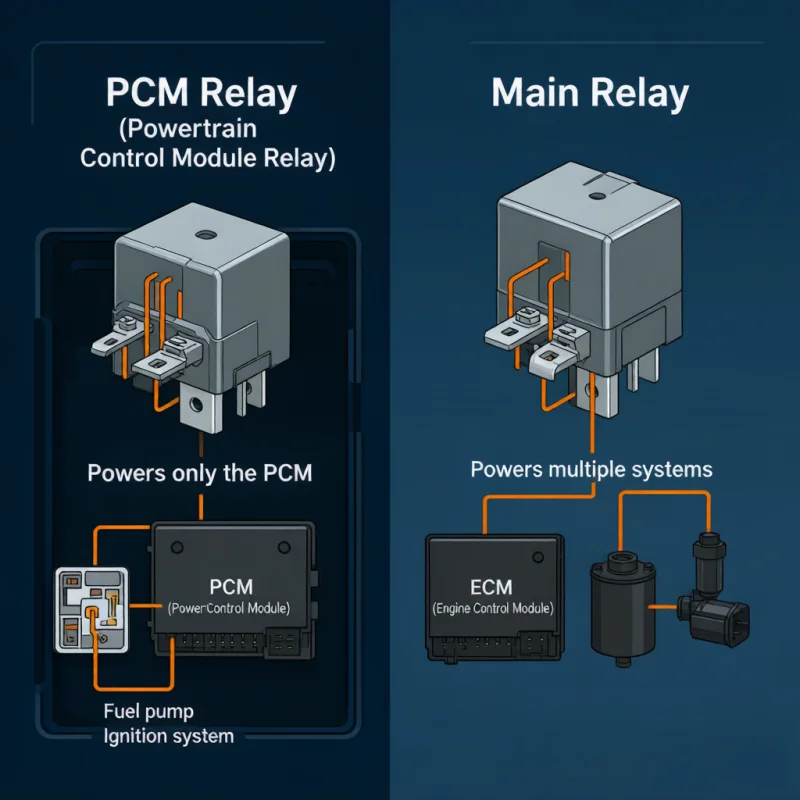

It easy to confuse the powertrain control module relay with the main relay, but they serve distinct purposes:
| Relay Type | Primary Job | Location | Controls |
|---|---|---|---|
| Powertrain Control Module Relay | Supplies power solely to the PCM | Fuse box or relay panel | Ensures PCM receives stable voltage |
| Main Relay | Feeds multiple critical systems | Often in the same area | Distributes power to fuel pump, ignition, ECM |
Relays can wear out from years of use, heat, and vibration. When the powertrain control module relay starts to fail, several symptoms can warn drivers or technicians:
These problems may initially seem unrelated, highlighting the importance of considering the relay when facing unusual electronic or engine behaviors.
A PCM that receives clean, steady power is able to precisely control fuel injection, timing, emissions, and transmission shifts. Even minor electrical disturbances can disrupt these calculations, leading to rough idling, poor acceleration, or excessive emissions. Vehicle safety and efficiency are both directly connected to a properly functioning powertrain control module relay.
The powertrain control module relay is a critical—yet often overlooked—part of modern automotive systems. By delivering consistent power to the PCM, it supports everything from smooth starts to optimal fuel efficiency. Failure of this inexpensive part can cause wide-ranging engine issues, electrical malfunctions, and diagnostic challenges.
Recognizing symptoms of a weak relay, understanding its function, and knowing how to replace one can save time, money, and frustration. If you are unsure about replacing the powertrain control module relay yourself, qualified shops and electronic specialists like Electronics can ensure safe, professional repairs.
Looking for a reliable PCM relay supplier? HWRELAY provides high-quality relay products, technical specifications, and OEM/ODM solutions to overseas markets. Contact us for bulk pricing.
If you suspect a faulty relay or blown fuse, replacing it is usually straightforward.
Essential tools:
Step-by-Step Replacement:
Replacing these small components can resolve many frustrating issues, restoring smooth vehicle operation quickly and affordably.
It controls power to the PCM, working as an electric switch to maintain steady voltage so the PCM can oversee engine functions.
Watch for engine stalls, poor engine response, hard starts, or trouble codes signaling PCM issues.
Use a fuse puller to remove the faulty fuse, insert a new one of the correct rating, and check it with a multimeter for proper function.
Yes; though it targets the PCM, problems may spread to other systems that depend on it, leading to stalling or poor performance.
The PCM relay supplies the PCM only, while the main relay provides power to several engine parts including the fuel pump and ignition.
Stable electricity lets the PCM govern engine functions. Any disruptions can trigger operational issues or lower vehicle performance.
