The main difference between Solid State Relay vs Mechanical Relay

Relays are indispensable components in electrical and electronic systems, acting as switches to control circuits. Among the most widely used types are Solid State Relays (SSRs) and Mechanical Relays (Electromechanical Relays, EMRs). While both serve the same fundamental purpose—switching electrical circuits—they differ significantly in how they operate, their design, performance, and the applications they are best suited for. This article dives deep into the key differences between these two types of relays, providing clear insights to help you choose the right one for your specific needs.

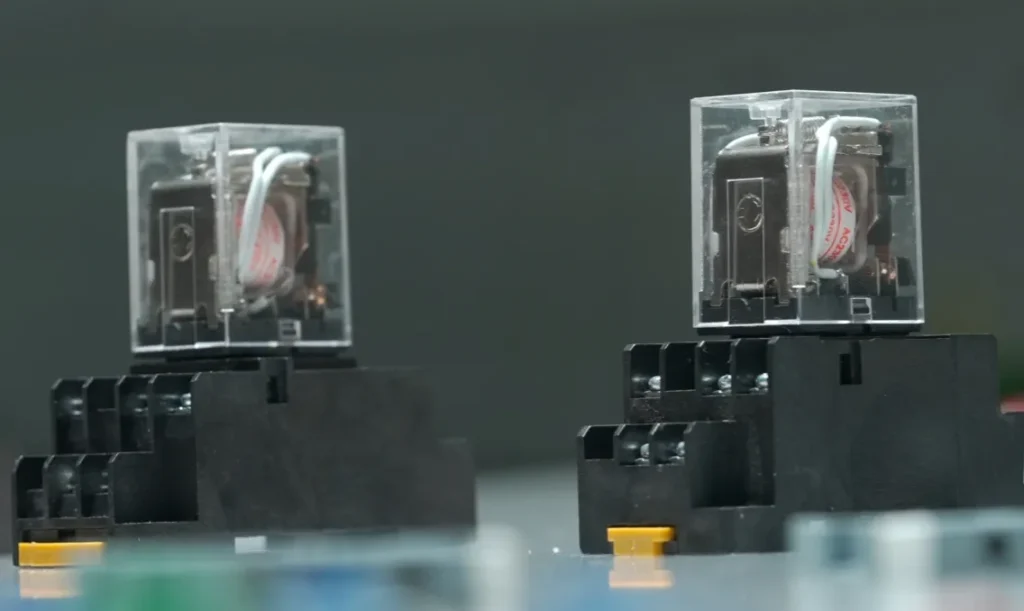

The main difference between the two relay

Differences in Operating Principles

Mechanical Relay:

• A mechanical relay operates on electromagnetic induction. When an electric current flows through its coil, it generates a magnetic field that physically moves a contact to open or close the circuit.
• This process depends on physical movement, making it prone to wear and tear over time. Think of it as flipping a light switch manually—there’s a tangible action involved.

Solid State Relay:

• A solid state relay, on the other hand, relies entirely on semiconductor components like thyristors, triacs, or transistors to perform switching. It uses optical coupling or other electronic methods to isolate input and output signals.
• Unlike its mechanical counterpart, there are no moving parts in an SSR. It’s like turning a light on with a remote control—instantaneous and frictionless.

Key Takeaway: The fundamental difference lies in their operation—mechanical relays rely on physical movement, while solid state relays leverage electronic switching for faster and more reliable performance.

Performance Comparison

Switching Speed:

• Mechanical Relay: The switching speed of a mechanical relay is relatively slow (measured in milliseconds) because of the time required for physical contacts to move. This makes it suitable for low-frequency operations where speed isn’t critical.
• Solid State Relay: SSRs switch at lightning-fast speeds (measured in microseconds), making them ideal for high-frequency applications like industrial automation or temperature control systems.

Lifespan and Reliability:

• Mechanical Relay: The lifespan of mechanical relays is limited by contact wear caused by repeated physical movement. They typically last between 100,000 and 1 million cycles.
• Solid State Relay: With no moving parts, SSRs boast an exceptionally long lifespan—often exceeding tens of millions of cycles. They’re also less likely to fail unexpectedly.

Power Consumption and Noise:

• Mechanical Relay: Mechanical relays consume more power because their electromagnetic coils must remain energized during operation. Additionally, they produce audible “clicking” sounds during switching.
• Solid State Relay: SSRs consume significantly less power and operate silently, making them perfect for environments where noise is a concern, such as hospitals or offices.

Durability in Harsh Environments:

• Mechanical Relay: These relays are more vulnerable to vibrations, shocks, and extreme temperatures due to their reliance on moving parts.
• Solid State Relay: SSRs excel in harsh environments thanks to their robust design. For example, they’re commonly used in industrial settings with high levels of vibration or heat.

Real-Life Example: Imagine you’re designing an automated assembly line that requires rapid switching to control robotic arms. A mechanical relay might struggle with the speed and wear out quickly, while an SSR would handle the task effortlessly without breaking a sweat.

Structural Differences

Mechanical Relay:

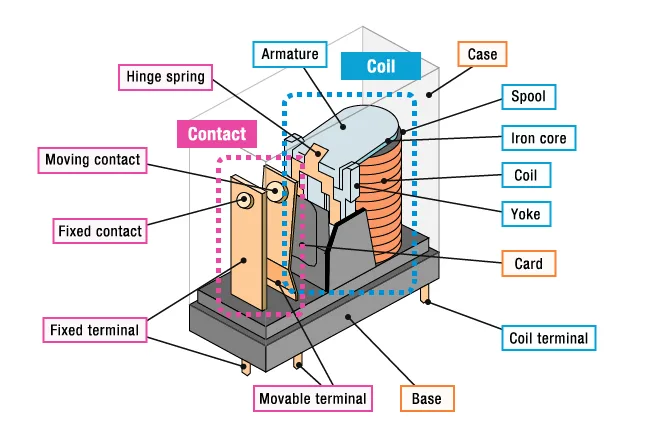

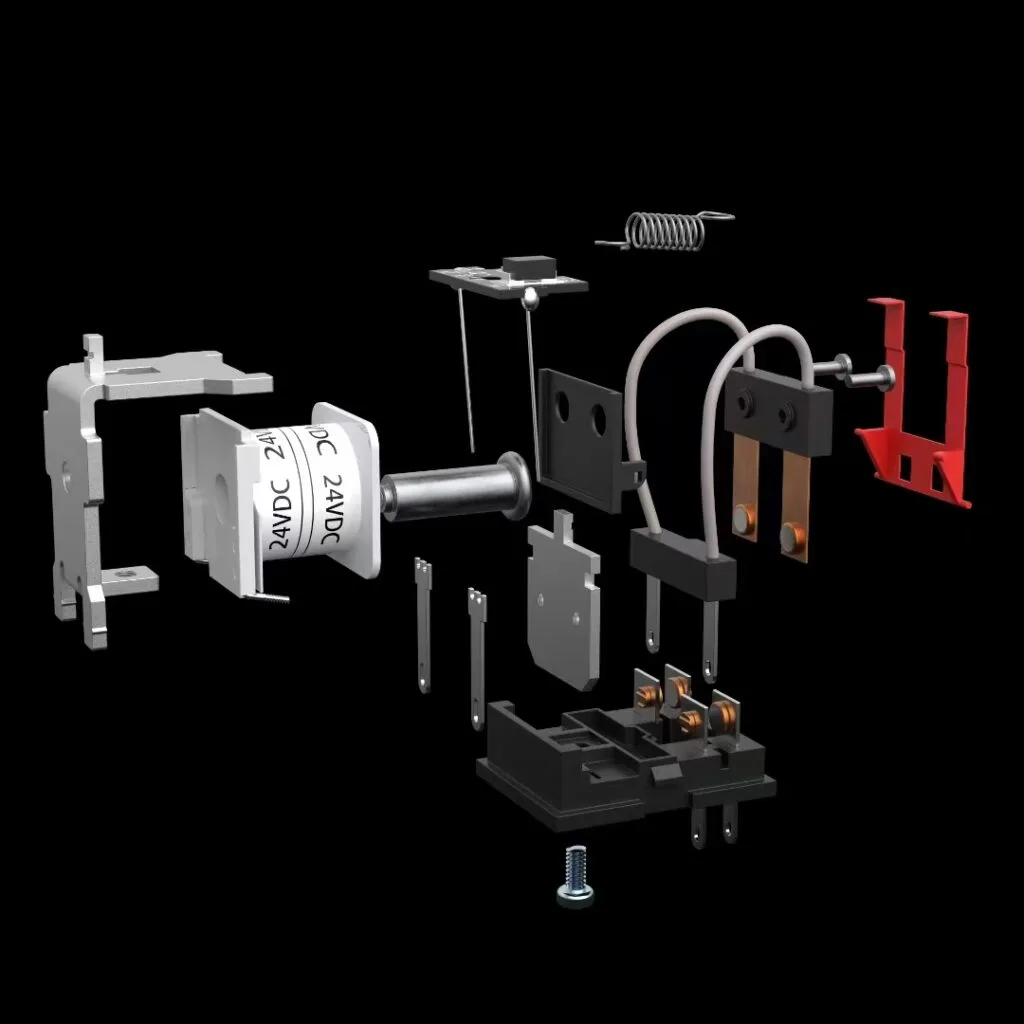

• Mechanical relays consist of an electromagnetic coil, armature, spring, and physical contacts. These components work together to enable switching.
• While simple in design, they tend to be bulkier than solid state alternatives.

Solid State Relay:

• SSRs are built with semiconductor components such as thyristors or triacs and often include optical isolation for enhanced safety.
• Their compact size and lightweight design make them easy to integrate into modern electronic systems where space is at a premium.

Key Insight: The lack of moving parts in SSRs not only improves reliability but also allows for more compact designs compared to the relatively larger mechanical relays.

Application Scenarios

Mechanical Relay Applications:

• Mechanical relays are well-suited for low-frequency operations where durability isn’t a primary concern.
• They’re commonly used for controlling large loads like motors in household appliances (e.g., washing machines) or industrial machinery.
• Their ability to provide physical isolation between circuits makes them ideal for safety-critical applications.

Solid State Relay Applications:

• SSRs shine in high-speed applications such as industrial automation systems or temperature control (e.g., HVAC systems).
• They’re also widely used in renewable energy systems like solar panel installations or wind turbines due to their reliability and efficiency.
• Their silent operation makes them indispensable in noise-sensitive environments like medical equipment or smart home devices.

Example Comparison: If you’re building a smart home lighting system that requires silent operation and frequent switching via remote control, an SSR would be your go-to choice over a noisy mechanical relay.

Cost Considerations

Mechanical Relay:

• Mechanical relays have a lower upfront cost compared to solid state relays.
• However, their shorter lifespan and higher maintenance requirements can lead to higher long-term costs.

Solid State Relay: While SSRs come with a higher initial price tag, their durability and minimal maintenance needs often make them more cost-effective over time.

Pro Tip: When calculating costs, don’t just consider the purchase price—factor in maintenance expenses and downtime caused by potential failures.

In summary, Solid State Relays (SSRs) and Mechanical Relays (EMRs) each have distinct advantages depending on the application. Mechanical relays are affordable solutions for simple tasks with low-frequency switching needs. Conversely, solid state relays excel in high-speed applications requiring reliability, durability, and silent operation. By understanding these differences, you can make informed decisions tailored to your specific requirements. As industries increasingly prioritize efficiency and longevity, SSRs are expected to dominate more applications in the future thanks to their superior performance and adaptability.
