Relay Its function

What is the function of a relay?

A relay is an essential component in electrical systems, acting as a switch that allows a low-power signal to control a high-power circuit. Its primary function is to isolate and protect circuits while enabling efficient control of electrical loads. Imagine it as a traffic cop directing the flow of electricity, ensuring that small signals can manage larger ones without direct contact. For instance, in automotive systems, a HW-14F-2Z enables the car’s ignition system to activate the engine using minimal current.

Relay are also critical in automation and electronics, where they manage complex operations such as timing and switching. A timer relay, for example, can delay or schedule the activation of devices, while a 4-channel relay module is ideal for controlling multiple devices simultaneously in smart home setups.

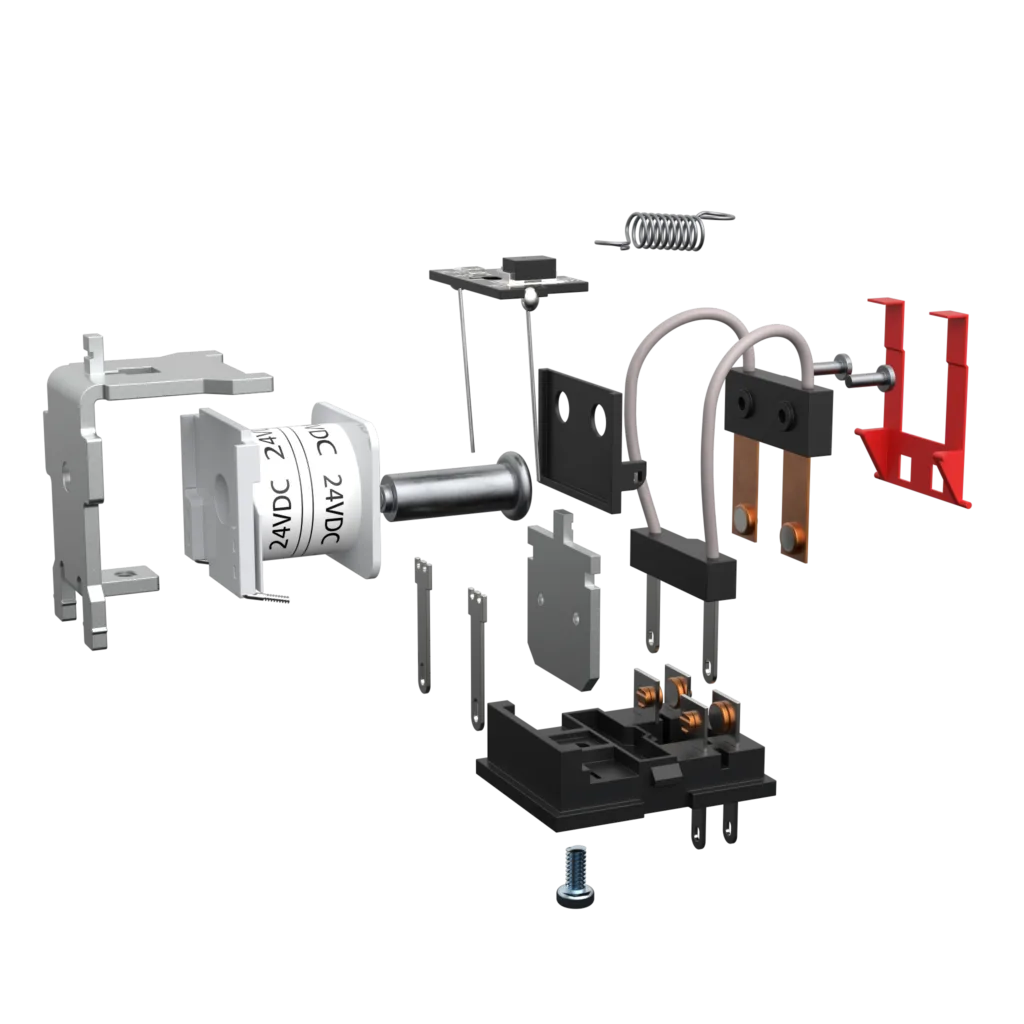

Internal structure diagram

Understanding how it works becomes easier with its internal structure:

• Coil: Generates the magnetic field when energized.
• Armature: A movable part that switches between contacts.
• Contacts: The points where circuits open or close (normally open or normally closed).
• Spring: Ensures the armature returns to its default position when de-energized.

A visual representation would show how these components interact to perform switching functions. In the following pictures you will notice that there are multiple coils and contacts within one unit, used to control different circuits simultaneously.

How does it work?

The working principle of a relay revolves around electromagnetism. When an electric current flows through the coil, it generates a magnetic field. This magnetic force pulls a movable armature, which either makes or breaks the connection in the circuit. Once the current stops, the magnetic field dissipates, and the armature returns to its original position.Here’s how it works:

1. A small input current activates the coil.
2. The coil’s magnetic field moves the armature.
3. The armature opens or closes the circuit, controlling the electricity flow.

This mechanism ensures that sensitive circuits remain isolated from high-power loads. In industrial automation, it is used to control heavy machinery without exposing delicate control systems to high voltages.

What is the purpose of a relay in a vehicle’s electrical system?

In vehicles, Small Relay are indispensable for managing various electrical functions efficiently. The starter relay, for instance, is crucial for starting your car. It allows a small ignition switch current to activate the starter motor, which requires significantly more power.

HW-14F-2Z Small Relay also enhance safety by isolating sensitive control circuits from high-current components like headlights, fuel pumps, and cooling fans. Without HW-14F-2Z, these systems would need thicker wires and larger switches, increasing costs and complexity.

Additionally, it helps prevent voltage drops and ensures consistent performance of all electrical components in the car.Whether it’s controlling your windshield wipers or powering auxiliary lights, make it all possible.

What happens when a fuse blows?

A blown fuse indicates an overloaded circuit or short circuit. Fuses act as protective devices that “sacrifice” themselves to prevent damage to other components when current exceeds safe levels.

• In cars: A blown fuse might disable critical systems like headlights or ignition.
• In electronics: It could stop devices connected via a 4-channel relay module from functioning.

To resolve this issue, identify the root cause—whether it’s faulty wiring or excessive load—and replace the fuse with one of the correct rating.

Where is it used?

Relays have diverse applications across industries:

• Automotive: Manage ignition systems; other control lights, fans, and pumps.
• Home Automation: A HW-14F-2Z powers smart home devices like lights and security systems.
• Industrial Automation: Schedule operations for machinery.
• Electronics: Protect sensitive circuits in devices like computers and appliances.
• Telecommunications: Assist in signal routing within networks.

Their versatility makes them indispensable in both simple and complex systems.

What are the different types of in electronics and what are their use cases?

1. Electromechanical Relays: Traditional equipment used for general switching tasks.
   • Example: Starting electrical equipment in vehicles.
2. Solid-State Relays: Use semiconductors instead of moving parts for faster operation.
   • Use case: Industrial automation requiring high-speed switching.
3. Timer Relays: Enable delayed activation or deactivation of circuits.
   • Example: Controlling streetlights based on time schedules.
4. Reed Relays: Compact relays with sealed contacts for low-current applications.
   • Use case: Signal switching in telecommunications.
5. 4-Channel Relay Modules: Unit for controlling multiple devices simultaneously.
   • Example: Smart home systems managing lights, fans, and alarms.

Each type serves specific purposes based on factors like load capacity, speed requirements, and environmental conditions.
