Relays are essential components in industrial automation. With their compact size, stable performance, and flexible installation, miniature relays are the preferred choice for modern automation system design. But with so many relay options on the market, how can you select the best one for your needs? In this article, we’ll guide you through the fundamentals, key selection criteria, typical applications, and common mistakes to help you make an informed decision.

Introduction to Miniature Relay Principles and Types

A miniature relay is a small-sized relay used to switch circuits on and off. It works by using an electromagnet to pull contacts together, enabling or disabling the circuit. Despite their small footprint, miniature relays deliver robust performance and reliability.

Common Types of Miniature Relays:

Electromagnetic Miniature Relay
The most widely used type, utilizing an electromagnet to operate mechanical contacts. Suitable for a variety of industrial control scenarios.
Solid State Miniature Relay
Uses semiconductor components instead of mechanical contacts, offering faster switching and longer lifespan—ideal for high-frequency switching.
Time Delay Miniature Relay
Provides delay functions for automation systems that require timed control.

Key Parameters for Selecting Miniature Relays

When choosing a miniature relay, several critical parameters must be considered:

1. Load Voltage & Current

The relay’s rated voltage and current must meet your application’s requirements. Always select a miniature relay whose ratings exceed the maximum load to ensure safety and stability.

Tip: For higher load currents, choose a relay with a higher current rating to prevent overload.

2. Contact Configuration

Contact type determines how the relay switches circuits. The main configurations are:

NO (Normally Open): Contacts are open when de-energized and close when energized.
NC (Normally Closed): Contacts are closed when de-energized and open when energized.
CO (Changeover): Includes both NO and NC contacts.

3. Size & Mounting

Space is often limited in automation equipment. Miniature relays are designed for compactness. Common mounting options include:

PCB Mounting: Soldered directly onto circuit boards to save space.
DIN Rail Mounting: Allows for easy installation, maintenance, and replacement.

The right mounting method improves reliability and serviceability.

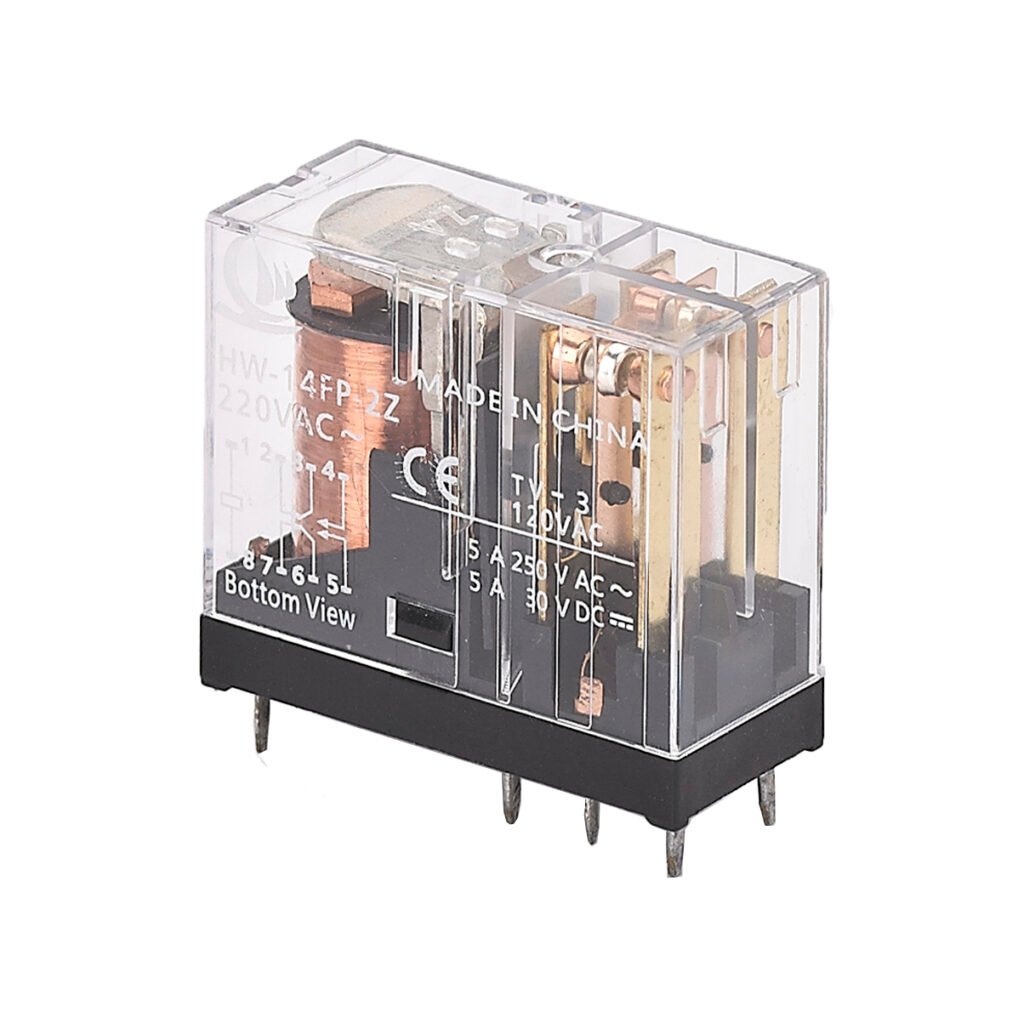

Compact High-Sensitivity Relay HW-14FP | PCB-Mounted

4. Switching Speed & Frequency

Different applications require different response times and switching frequencies. High-speed switching is crucial for signal processing and rapid control.

Note: Solid state miniature relays excel in high-frequency applications.

5. Insulation & Noise Immunity

Industrial environments are full of electromagnetic interference. Miniature relays must offer strong insulation and noise immunity to keep control systems stable.

Advice: Choose products that meet international insulation standards for safety.

6. Environmental Resistance

Miniature relays must withstand temperature, humidity, and other environmental factors. The IP rating is an important indicator.

Reminder: In high-temperature or humid environments, select relays with suitable protection ratings.

Typical Applications of Miniature Relays in Industrial Automation

Miniature relays are widely used in various areas of industrial automation, including:

Automation Control Systems
For controlling motor start/stop and signal switching.
Machine Tool and Equipment Control
Ensuring precise and safe machine operation.
Industrial Signal Switching
For complex signal conversion and isolation.

These applications demand high performance and reliability, making the right relay selection critical for system success.

Common Selection Mistakes and Tips for Relay

It’s easy to make mistakes when choosing a Small Relays. Here are some common pitfalls:

Focusing Only on Price, Ignoring Performance
Low-cost relays may not meet the rigorous demands of industrial environments, leading to failures.
Overlooking Load Type and Current Peaks
Always account for starting current and surge current, not just steady-state current.
Ignoring Environmental Factors
Not considering temperature, humidity, or protection ratings can shorten relay lifespan.

Selection Tips:

Fully understand your application and load requirements.
Choose products from reputable, professional manufacturers.
Consider environmental and installation conditions in advance.

Choosing the right Relays is crucial for the stable operation of your automation system. By understanding relay types, key parameters, and application scenarios, you can better match your equipment needs and avoid costly mistakes.

If you’re looking for high-quality, reliable Small Relays, we’re here to help. As a professional miniature relay manufacturer, we offer a wide range of products and customized solutions to support your automation projects. Contact us today for technical support and a competitive quote!

FAQ

What’s the difference between a miniature relay and a standard relay?

Small Relays are smaller in size, making them ideal for compact devices. They also offer faster response and higher reliability.

How do I determine if a relay’s rated current is suitable?

Choose a relay whose rated current exceeds your load’s maximum working and starting current.

When should I use a solid state miniature relay?

Solid state relays are best for high-frequency switching, contactless control, and long-life applications.

How do I choose the right contact configuration?

Select NO (normally open), NC (normally closed), or CO (changeover) contacts based on your control logic.

How can I ensure relay stability in industrial environments?

Opt for relays with strong insulation, noise immunity, and environmental resistance.
