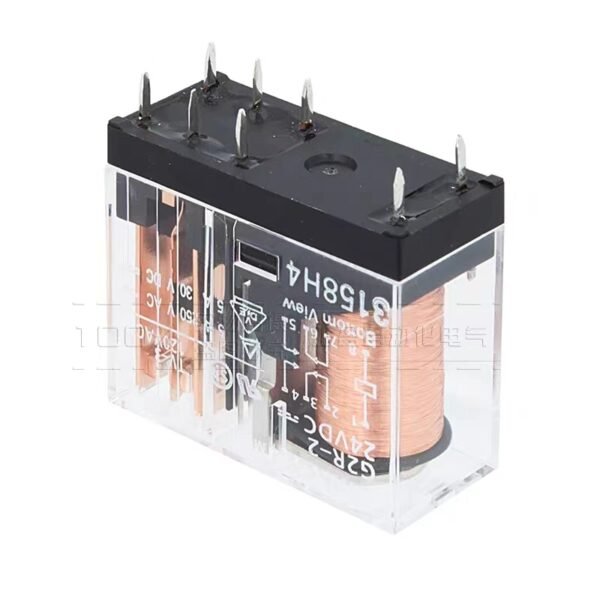

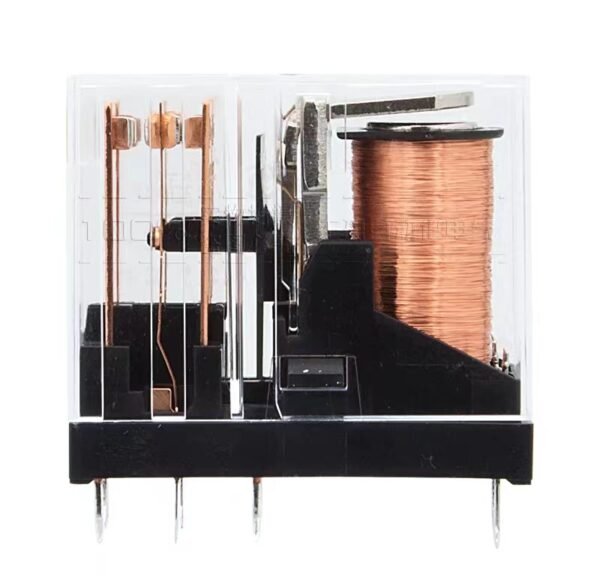

Compact High-Sensitivity Relay HW-14FP | PCB-Mounted

HW-14FP relay is a small, light, high-sensitivity product produced by Hangwang Electric, with a long service life. The rated load capacity is up to 16A and is suitable for PCB installation.

Additional information

Contact Resistance

≤50mΩ

Material

Ag alloy

Operate Time

≤20ms

Release Time

≤10ms

Product Details

Model: HW-14FP

Product Characteristics:

①Small size, light weight, high sensitivity, long service life.

②Provides one and two sets of contacts.

③1C 2C(conversion type)  1A 2A(normally open type)  1B 2B(normally closed type)

④16A

Model Description

HW 14F Optional Optional P Optional Optional VDC

①Enterprise code: Hangwang Electric

②Serial number: 14F

③Number of contact groups: 1or 2

④Contact form: (Z-conversion type  H-normally open type  D-normally closed contact)

⑤Mounted type: P: PCB mounted type  No letters: plug-in mounted

⑥Operating state: L: LED indicate  No letters: no indicate

⑦Auxiliary function: D/CR Inhibitory protection

⑧Coil voltage: (DC: direct voltage  AC: alternating voltage)

Specification









Contact

Rated load Resistive(AC-1) 10A1250VAC,30VDC 5A/250VAC,30VDC
Motor (AC-15) 1/3HP.240VAC,112HP.240VAC 1/6HP,240VAC
Operating power(Resistive) 2500VA.300W:4000VA.480W 1250VA,150W;2000VA.240W
Contact resistance(Initial) ≤50mΩ
Material Ag alloy
Electrical life ≥105 times  cycles(1800 0ps/h)
Mechanical life ≥108 times  cycles(18000 0ps/h)
Operate voltage(at 25℃) DC:≤75% Rated voltage,AC:≤80% Rated voltage
Release voltage(at 25℃) DC:≤10% Rated voltage,AC:≤30% Rated voltage
Max allowed voltage(at 25℃) 110% Rated voltage
Insulation resistance ≥100MQ(500VDC)
Coil power consumption DC(W) 0.53
AC(VA) 1.0
Operate time ≤20ms
Release time ≤10ms


Dielectric

Strength

Between contacts 1000VAC/1min(Leakage current 1 mA)
Between contacts(different pole) 1000VAC/1min(Leakage current 1 mA)
 Between contact and coil 5000VAC/1min(Leakage current 1 mA)
Ambient temperature -40~+65℃
Humidity 35%~85%RH
Atmospheric Pressure 86~106KPa
Shock resistance 10G(Half a wave of pulses of sine: 11ms)
Vibration resistance 10~55Hz Dual amplitude:1.0mm
Install model PCB terminal
Weight 17g



Coil type

DC Rated voltage 3 5 6 9 12 18 24 36 48 110
Ω(±10%)Coil resistance 17 47 68 150 270 610 1100 2440 4300 22800
AC Rated voltage 6 12 24 48 110 220
Ω(±10%)Coil resistance 16 63 240 1085 5500 21000



Performance chart

1

For more information on relay selection, please view the Selection Guide . Also, to ensure that you use our products correctly and safely, be sure to read the Matters Needing Attention .
