Model:HW-30F-2Z
Product Characteristics:
①Strong structure, strong impact resistance, strong vibration resistance and long service life.
②Load switching current: 30A.
③Socket mounted or flange mounted.
④Provide 2 set of contact conversion.
| Contact resistance | ≤100mΩ |
|---|---|
| Electrical life | ≥5×10⁴ times |
| Mechanical life | ≥10⁶ times |
| Coil voltage | DC: 6-220V AC: 6-380V |
| Suction time | ≤25ms |
| HW | 32F | 2 | Optional | Optional | D | VDC |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ |
①Enterprise code: Hangwang Electric
②Serial number: 30F
③Number of contact groups: 2
④Contact form: (Z-conversion type H-normally open type D-normally closed contact)
⑤Mounted type: F: flange mounted type No letters: plug-in mounted
⑥Auxiliary function: D/CR Inhibitory protection
⑦Coil voltage: (DC: direct voltage AC: alternating voltage)
| Contact form | 2Z,2H,2D |
| Contact load | 30A |
| Maximum switching voltage | 28VAC 30A 240VDC 30A |
| Contact material | Silver alloy |
| Rated voltage V | DC12V | DC24V | DC110V | DC220V |
| Rated current(+10%)mA | 167 | 83.3 | 18.2 | 9 |
| Coil resistance(+10%)Ω | 71.8 | 288 | 6044 | 24444 |
| Rated power consumption W | 2.0W | |||
| Pick-up voltage（max）V | Less than 75% | |||
| Drop-out voltage (min) V | 10% or more | |||
| Allowable voltage(max) V | Rated voltage ×110% | |||
| Rated voltage V | AC12V | AC24V | AC110V | AC220V |
| Rated current(+10%)mA | 333 | 167 | 36 | 18.1 |
| Coil resistance(+10%)Ω | 12.6 | 50.3 | 1069 | 4254 |
| Rated power consumption W | 5.5VA | |||
| Pick-up voltage（max）V | Less than 80% | |||
| Drop-out voltage (min) V | 30% or more | |||
| Allowable voltage(max) V | Rated voltage ×110% | |||
| Contact resistance | ≤100mΩ |
| Electrical life | ≥5×10⁴ times |
| Mechanical life | ≥10⁶ times |
| Coil voltage | DC: 6-220V AC: 6-380V |
| Suction time | ≤25ms |
| Release time | ≤10ms |
| Between the same pole contacts | 1000VAC/1min(Leakage current 1mA) |
| Between opposite pole contacts | 1200VAC/1min(Leakage current 1mA) |
| Between contact and coil | 1500VAC/1min(Leakage current 1mA) |
| Insulation resistance | ≥100MΩ(500VDC) |
| Ambient temperature | -25°C ~ +55°C |
| Ambient humidity | 35% ~ 80%RH |
| Atmospheric pressure | 86 ~ 106KPa |
| Impact resistance | 10G (Sine wave half pulse: 11ms) |
| Vibration resistance | 10-55Hz (Double amplitude: 1.5mm) |

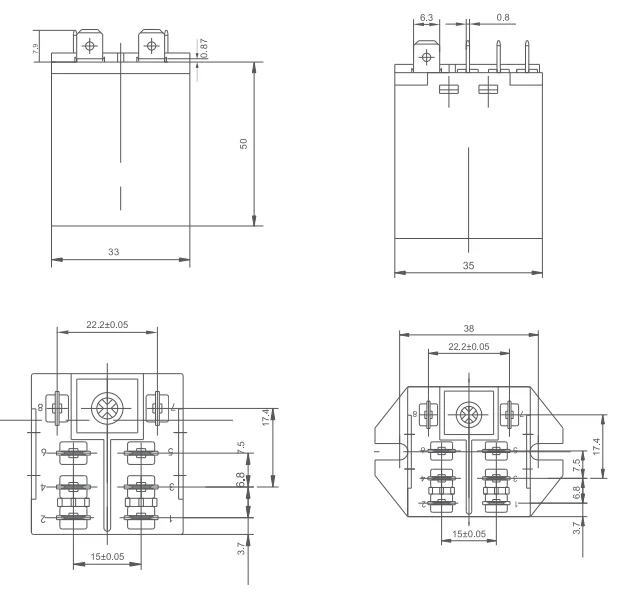

| Dimensions | 43 × 35.5 ×48mm |
| Weight | About 40g |
For more information on relay selection, please view the Selection Guide . Also, to ensure that you use our products correctly and safely, be sure to read the Matters Needing Attention .
